Solid State Stereo Tape Deck (1970)

add a review

Description

The Kenwood KW-4066 is a high quality stereo tape deck which has been especially engineered to meet the highest standards and requirements of audio fans.

It is a dependable, one motor, three head system which employs all silicon transistor recording and playback preamplifiers.

It has been designed so that it can be readily panel mounted to form an integral part of you HiFi system.

Specifications

Track system: 4-track, 2-channel, stereo/monaural system

Heads: 1 x record, 1 x play, 1 x erase

Reel size: up to 7 inch reel

Equalization: NAB

Tape speeds: 1 ⁷⁄₈  3 ³⁄₄  7 ¹⁄₂ ips

Wow and flutter: 0.15% (7 ¹⁄₂ ips)

Frequency response: 25Hz to 20kHz (7 ¹⁄₂ ips)

Signal to Noise Ratio: 50dB

Total harmonic distortion: 0.6%

Input: 100mV (line), 0.55mV (mic)

Output: 0.775V (line)

Semiconductors: 16 x transistors, 6 x diodes

Dimensions: 16 x 7-1/16 x 12-11/16 inches

Weight: 22lbs

Accessories: 7" reel, connecting cords, reel caps, reel adjusting discs

Year: 1970

Downloads

Comments

 4 head Sosslid State Streo Tape Deck

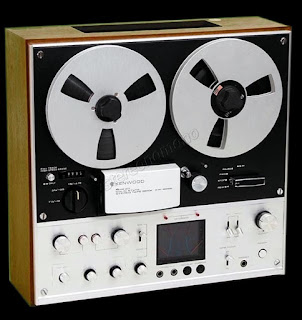

Kenwood's KW-5066 is equipped with epoch-making Recording Bias Adjustment, high Speed full Track Erase System, Sound-on-Sound and Echo Recordings with Level Control etc., which will no doubt recall the real pleasures of Recording most tape decks have been long passed by.  Its recording and reproduction quality is needless to say refined by low noise pre-amplifiers. Add on your line-up and fully make use of  this Super Recording machine, KW-5066.

Special Features

Recording Bias Adjustment System permits the most desiderable bias for high fidelity recording on the recorder for a specific tape by the incorporated test signal oscillator.

 The exclusive Full Track Erase head with triple safety mechanism for rewinding provides instant full track erase of a pre-recorded tape.

 Easy-to read large size dual illuminated VU meters on the front panel ensures accurate recording and playback levels.

 Separate Input and Output level Control for easy monitoring.

 The exclusive DIN connector permits easy dubbing.

 Easy loading by one hand.

Sophisticated special recording can be done by setting only Sound-on -Sound and Echo recording level control and switch on front panel.

 Auto-Stop mechanism built into the head housing and 4-digit tape counter.

 Low-noise Silicon Transistors are used in special record and playback pre-amplifiers for high signal-to-noise ratio and low distortion.

 A Tape  Monitor Switch enables a fast, easy means to check sound immediately before and after it is recorded during the recording process.

 Three tape speeds to suit your recording requirements - 71/2 ips and 33-/4 ips speeds for high fidelity recordings and 1-7/8 ips for speech recordings

Noise Filter enables one to eliminate undesirable hiss noise on pre-recorded tape.

Specifications

Recording System:  4-Track Stereo/Mono recording and playback

Tape speeds:  7-1/2 ips, 3-3/4 ips 1-7/8 ips

Reels: Standard NAB 7" or smaller

Frequency Response:

25 - 20,000 Hz at 7-1/2 ips

25 - 12,000 Hz at 3-3/4 ips

25 - 6,000 Hz at 1-7/8 ips

Signal-to-Noise Ratio:  better than 50 dB

Harmonic Distortion (Preamp):  less than 0,6% at 0 dBs (0,775 V)

Wow and Flutter (Playback):

At 7-1/2 ips :  less than 0,15% (RMS); 0,08% (WRMS)

At 3-3/4 ips : less than 0,25% (RMS); 0,10% (WRMS)

At 1-7/8 ips :  less than 0,35% (RMS); 0,15% (WRMS)

Recording Time (4-Track Stereo)

1 hrs at 7-1/2 ips

2 hrs at 3-3/4 ips

4 hrs at 1-7/8 ips

Fast Wind/Rwind Time:  within 150 sec. With 1200 ft tape

Level Indicator:  Two VU Meters

Inputs Sensitivity/Impedance:

Mic :  63 dBs (0,55 mV)/ 50 k Ω

Line :  18 dBs (100 mV)/ 100 k Ω

Output Level/Impedance:

Line :  0 dBs (0,775 V)/ 100 k Ω

Headphone :  28 dBs (30 mV)/ 8 Ω or more

DIN Connector:

Input Sensitivity/Impednce:  38 dBs (9.8 mV) / 100 k Ω

Output level/Impedance:  0 dB (0,775 V)/ 3 k Ω

Equalizer:  NAB (record and Playback)

Heads:  4 Heads - Playback ; Recording, Erase and Full-track Erase

Bias Frequency:  approx 85 kHz

Transistors:  19 low-noise silicon transistor

Diodes:  2

Operating Position: Horizontal or Verical

Power Requirement:  110 - 120 V;  220 - 240V, AC 50/60 Hz

Dimensions (W x H x D):  16-1/2" x 7" x 15-1/2"

Weight:  24 lbs
